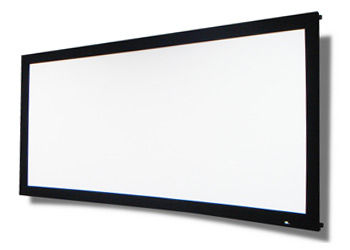

OS PX Series Fixed Type

Reproduce realistic picture and layering, so effective to avoid moire phenomenon.
Pure Mat III, a highly diffusive fabric, corresponding to 4K or 8K large format screen material, now available with Fixed-frame screens (PX series).



In addition of curved screens to our PX series for projector end-users using Anamorphic Lens to enjoy widescreen 2.35:1 cinemascope movies at home.

• HF102 - A screen that makes use of the wide gradation of HDR-compatible projectors.
• High gain (luminance) screen with a gain of 2.7.
• Surface processing reduced hot spots to the utmost limits.
• It offers a high viewing angle that allows comfortable viewing even off centre position.
• A fabric screen which carried on the tradition of pure mats.
• A high gain can be obtained, and even after the gainfalls below 1.0, the descending curve is gentle and a natural image is reproduced.In addition, even if ambient light enters, it regresses like a beads type.



• BU301 - A screen that makes use of the wide gradation of compatible projectors.
• High gain (luminance) screen with a gain of 2.02.
• Surface processing reduced hot spots to the utmost limits.
• It offers a high viewing angle that allows comfortable viewing even off centre position.
• A fabric screen which carried on the tradition of pure mats.
• A high gain can be obtained, and even after the gainfalls below 1.0, the descending curve is gentle and a natural image is reproduced.In addition, even if ambient light enters, it regresses like a beads type.



• WF302 Fabrics: Pure Mat III Cinema is a special fabric screen which weaves simultaneously, so-called special double weave.
• Downsize the thickness of conventional pure mat yarns by half to reduce the weave texture of the random fabric surface to 1/4 that realizes the reproducibility of a very soft and mild projection and excellent focus feeling.
• Higher diffusivity: 3° gain of 1.00, ideal diffusivity which can also be a perfect diffusion.
• The WF302 screen is appropriate to the 4K perfect diffusion. The diffusive screen reflects image of the same quality in all forward direction regardless of the viewer's position.



• WF204 produces little moire but less due to special double-folded fabrics of polyester fibers.
• This is an ideal diffusion type with almost no loss ofgain even at a viewing angle of 60° or more.
• Since the curtain surface is not colored, bring out more of color effect.
• The WF204 is a diffusive FHD-enabled screen.
  Diffusive screens reflect image of the same qualityin all forward directions, regardless of the viewer's position.



• WF801 professional uses fabric base and topcoat technology to deliver truly 4K high-definition images in a uniform and beautiful manner.
• The white topcoat definitely reproduces the original image.
• The random woven fabric makes smooth surface and moiré-free.
• WF801 is diffusive type screen.
  Since diffusive type screen reflects the same quality image in any directions, it provides the same quality image to all viewers at any position.
