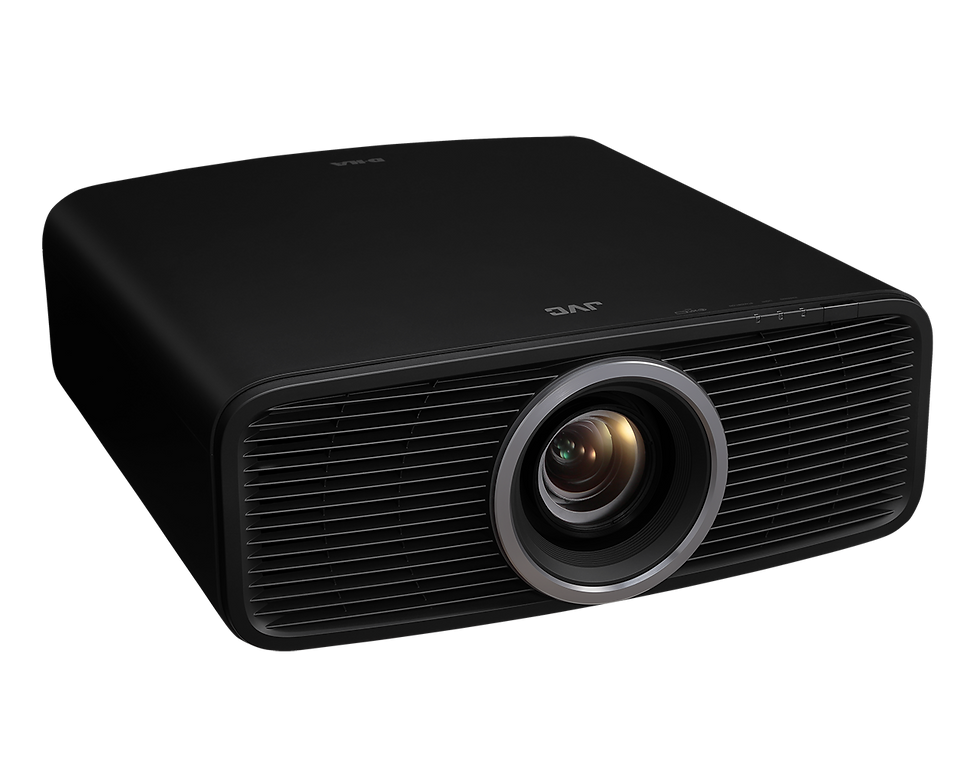

JVC Projector DLA-NZ500

• All Components Redesigned

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

• Volume Reduction

The DLA-NZ700/NZ500/RS2200/RS1200 has a dimension reduction of 35% compared to the previous DLA-NZ7/RS2100, while still incorporating a laser light source and native 4K D-ILA device.

• Re-design of Air Intake and Exhaust

By placing the heat source exhaust at the rear, the potential impact of the image on the projection screen has been eliminated. This provides more flexibility for installation.

• Environmental Considerations

The design of the new projector models use significantly less plastic, which also reduces transportation costs. This leads to a product that is much more environmentally friendly.

0.69 inch native 4K D-ILA device enhances video quality

Our proprietary 0.69inch native 4K D-ILA device has been advanced to further enhance black details.　

• High native contrast

The DLA-NZ700/RS2200 achieves 80,000:1* native contrast by simultaneously improving alignment control and pixel flatness. *: 40,000:1 for 'DLA-NZ500/RS1200'

• Uniform brightness

The Manufacturing process has improved uniformity of brightness across the entire screen, with beautiful image quality to every corner.

• High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

• Improved Power Efficiency

The DLA-NZ700/NZ500’s brightness per watt of effective power is approximately 2 times that of the first model equipped with BLU-Escent Laser (the DLA-Z1 was released in January 2017, with a brightness of 3,000lm).

• Controlling the Luminance in 101 Steps

BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control by slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can be used to make fine adjustments to match the target luminance in the environment and on the screen.

• Superior Resolution

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

• Installation flexibility

Fully electric (Zoom, Focus, Shift), with 70% vertical and 28% horizontal shifts for easy installation.

• HDR Drastically Improves Expressive Power of Images

When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut and 10-bit gradation, rely on the new D-ILA projectors. Both models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.

• DML (Display Mastering Luminance) for Better HDR Experience

DML (Max Display Mastering Luminance) metadata, which represents the nit level of the professional monitor used to grade the movie to the director's standards, is used to set the dynamic range of the title for improved HDR tone mapping. On the DLA-NZ700/NZ500 series, both DML and MaxCLL values are used for the HDR levels.
